Beyond Black and White: Adapting Models to Visual Domain Shift

This project explores Unsupervised Domain Adaptation (UDA) techniques to address covariate shift in neural networks. We demonstrate how models trained on a source domain (grayscale MNIST digits) fail to generalize to a visually complex target domain (colored and textured MNIST-M digits), even when the underlying classification task is identical.

The project is implemented across three progressive stages:

1. Baseline: Demonstrating the impact of domain shift on model performance.
2. Distance-based Alignment: Using Maximum Mean Discrepancy (MMD) to align latent feature distributions.
3. Adversarial Training (DANN): Implementing Domain-Adversarial Neural Networks with a Gradient Reversal Layer (GRL) for superior feature alignment.

The Problem: Covariate Shift

Neural networks typically assume that training and deployment data follow the same distribution. In this project, we utilize:

• Source Domain : MNIST (grayscale digit images).
• Target Domain : MNIST-M (digits blended with random color patches from the BSDS500 dataset).

While the label space remains the same, the visual shift causes a standard CNN to struggle with learning dataset-invariant features.

Methodology & Results

Task 1: Baseline (Domain Shift Demonstration)

A standard CNN was trained exclusively on the source domain (MNIST). While it achieved high accuracy on the source test set, performance plummeted by over 50% when evaluated on the unseen MNIST-M target domain, proving the model’s inability to generalize under covariate shift.

Task 2: Distance-based Domain Adaptation

We implemented a “tug-of-war” optimization using Energy Distance (mathematically equivalent to MMD with a Gaussian kernel).

• Approach: Forced the network to output latent representations that are statistically identical for both domains.
• Results: Performance on MNIST-M jumped from ~43% to ~63%.
• Key Finding: Statistical alignment is highly sensitive to batch size. Larger batch sizes (up to 1024) significantly improved statistical distribution estimates, peaking at 79.36% accuracy with tuned learning rates.

Task 3: Adversarial Domain Adaptation (DANN)

Inspired by GANs, we implemented a Domain-Adversarial Neural Network (DANN).

• Architecture: Modified the CNN to include a Domain Discriminator and a Gradient Reversal Layer (GRL).
• Mechanism: The feature extractor actively learns to “confuse” the discriminator, ensuring features are discriminative for classification but uninformative regarding the domain.
• Results: This method achieved the highest robustness, with a mean accuracy of 89.04% using a fixed alpha strategy.

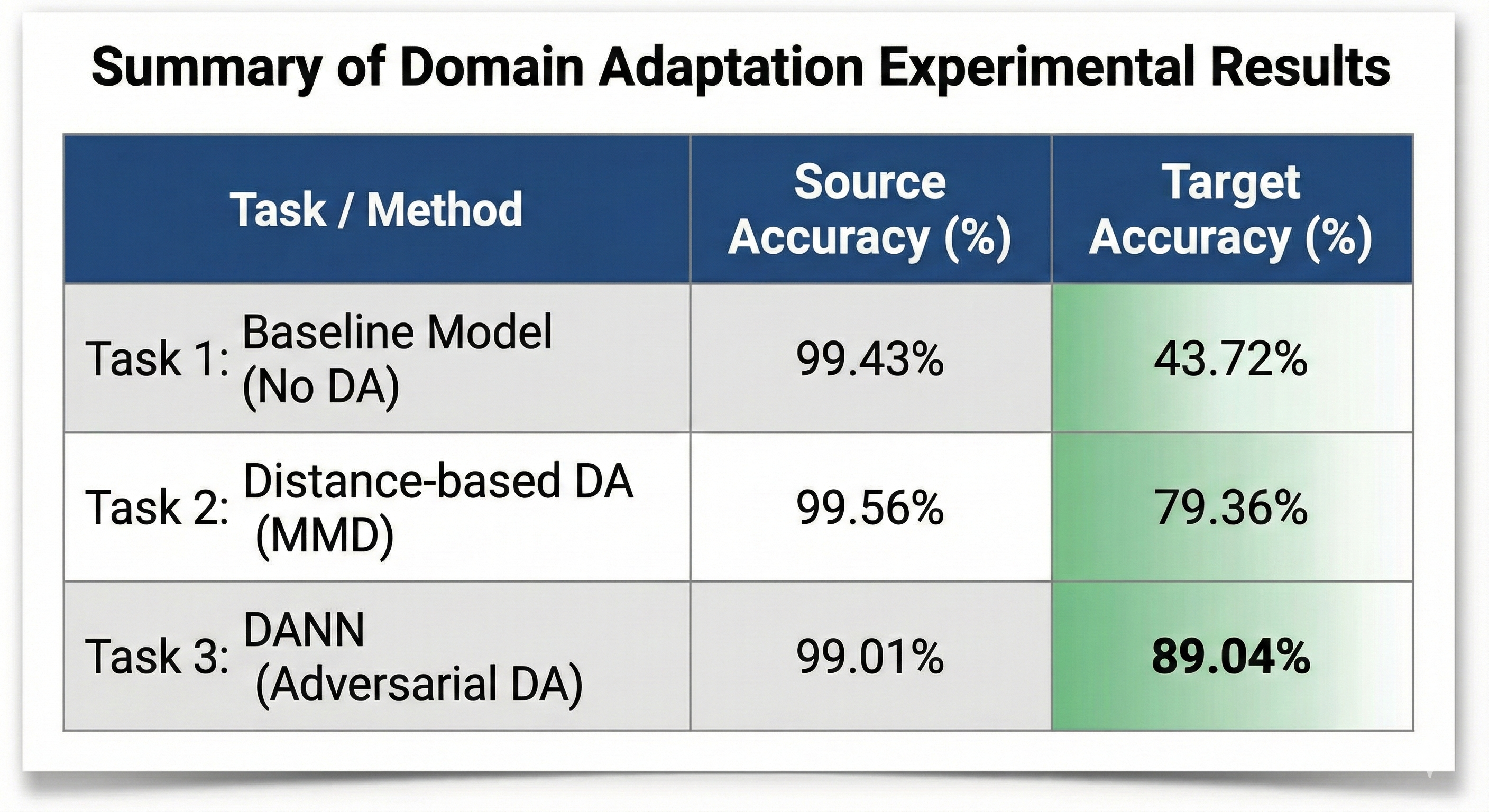

Results summary

Key Technical Concepts

• Gradient Reversal Layer (GRL): Acts as an identity function during the forward pass but multiplies gradients by during backpropagation to facilitate adversarial training.
• Unsupervised Adaptation: No target labels were ever used during the training process; the model adapts purely through feature alignment.
